AP-200M MONO POWER AMPLIFIER
1. Product Overview
The AP-200M is a flagship mono power amplifier meticulously engineered for high-fidelity audio enthusiasts. Combining exquisite solid-wood craftsmanship, a heavy-duty unibody aluminum chassis, and rigorous audiophile circuitry, it delivers formidable driving power with pristine musical clarity.
2. Design & Craftsmanship Highlights
-

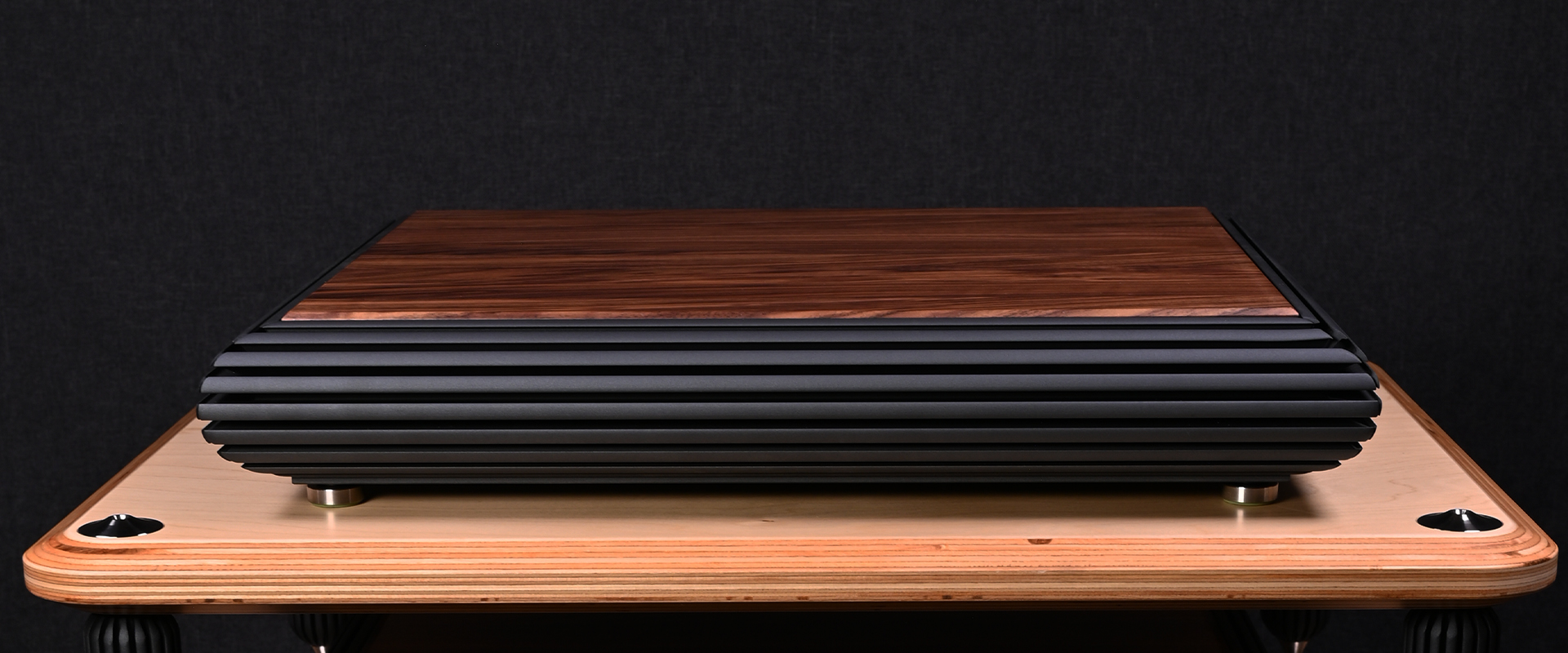

Solid American Walnut Top Cover: Selected natural walnut wood top cover providing organic aesthetic elegance and effective acoustic micro-resonance damping.
-
Full Aluminum Damping Chassis: Precision CNC-machined heavy aluminum housing with streamlined side cooling fins for optimal thermal dissipation and EMI shielding.
-
Custom Pure Copper Binding Posts: High-current pure copper speaker terminals ensuring zero-loss signal transmission and open dynamics.
-
Stainless Steel & Teflon Footers: Custom heavy-duty stainless steel feet embedded with Teflon damping rings to decouple external floor vibrations.
-

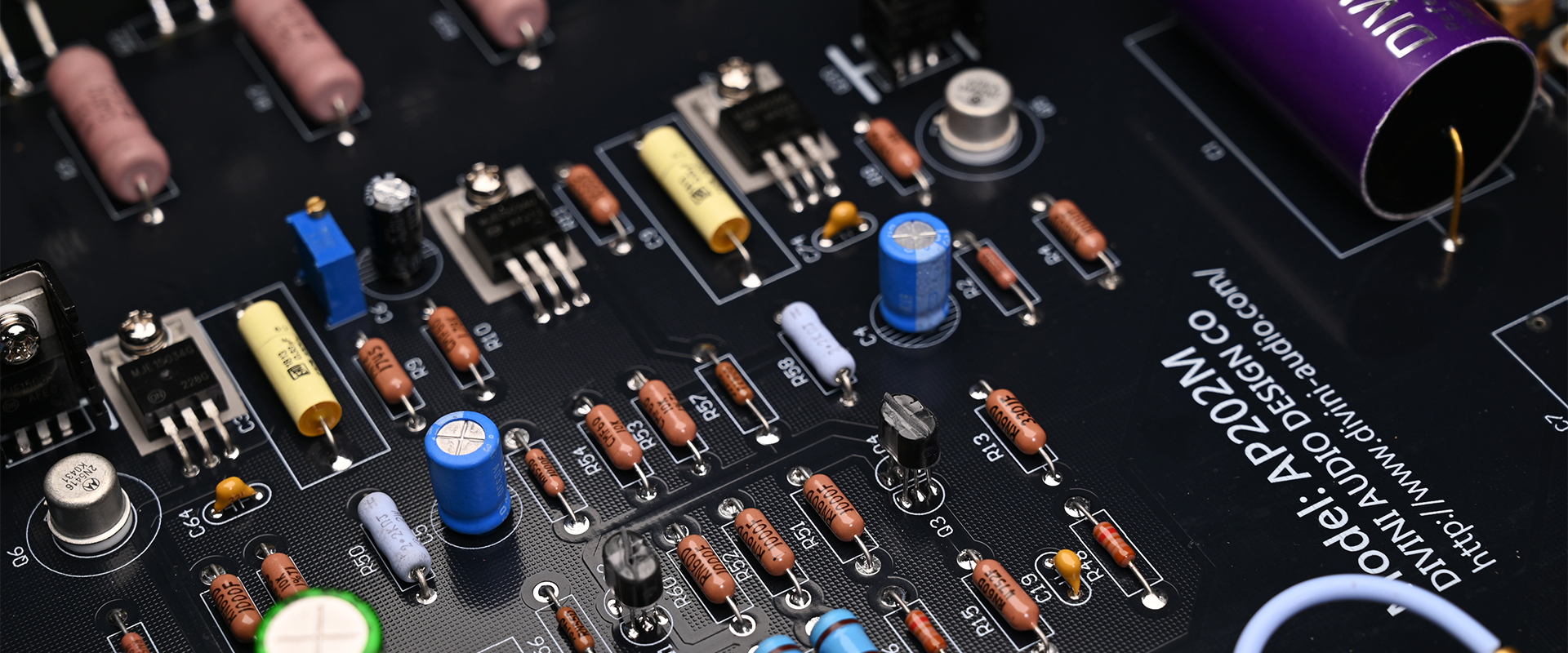

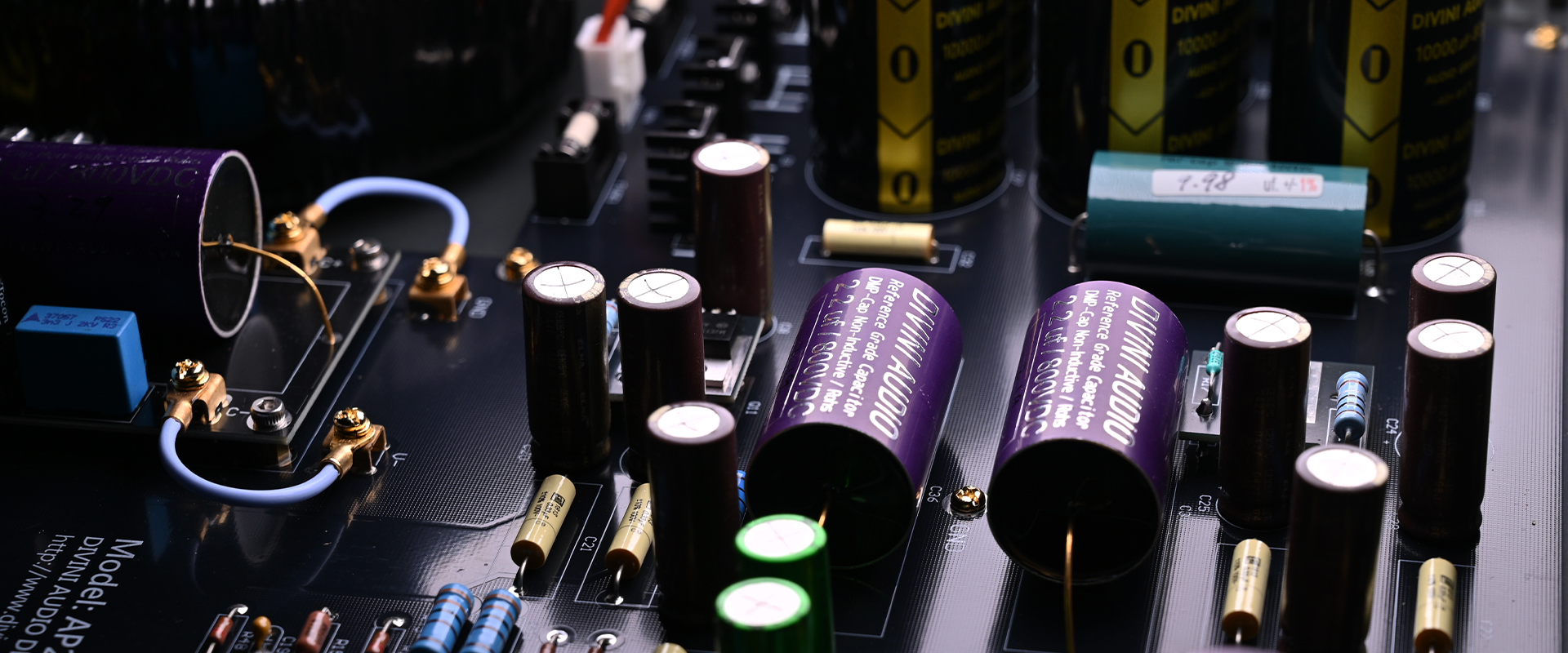

Audiophile Power & Component Layout: Built around a custom ultra-low-leakage toroidal transformer, high-speed filter capacitor banks, and high-current complementary output transistors for lightning-fast transient control.
3. Technical Specifications
| Specification | Details |
| Model Name | AP-200M |
| Amplifier Type | Mono Power Amplifier |
| Rated Output Power | 200W @ 8Ω / 400W @ 4Ω (Continuous RMS) |

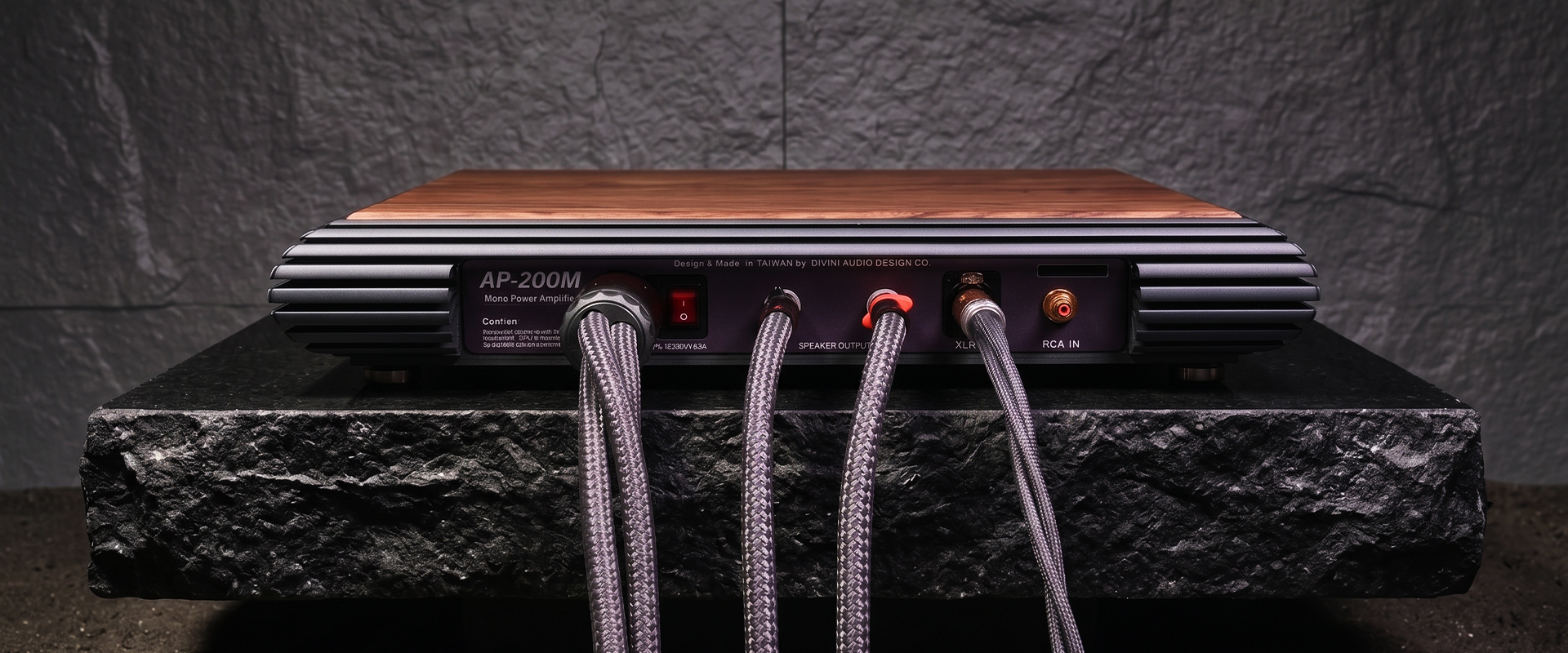

| Input Interfaces | 1 × Balanced XLR Input / 1 × Single-Ended RCA Input |
| Output Terminals | Custom Gold-Plated Pure Copper Binding Posts (Banana / Spade compatible) |
| Isolation Footers | Precision Stainless Steel Feet with Integrated Teflon Rings |
| Chassis Material | Solid Walnut Top Cover + Full Aluminum Damping Enclosure |
| Dimensions (W×D×H) | 480 mm × 400 mm × 82 mm |
| Net Weight | 12.8 kg / unit |
